Scatter Charts and Filtered Data

You can use the Filter tab of the Forecast Preferences dialog to include or exclude specific ranges of data from forecast charts (Filter Tab). If you include a filtered forecast in a scatter chart, you can select whether or not to show filtered points in the chart.

  To change this setting:

  1. Open the scatter chart and select Preferences, and then Chart.

  2. Click the Chart Type tab.

  3. Select or clear Show Points That Have Been Filtered Out to show or hide the filtered points, respectively.

  4. Click OK.

    By default, filtered points are displayed in scatter charts as very light (grayed) points or symbols.

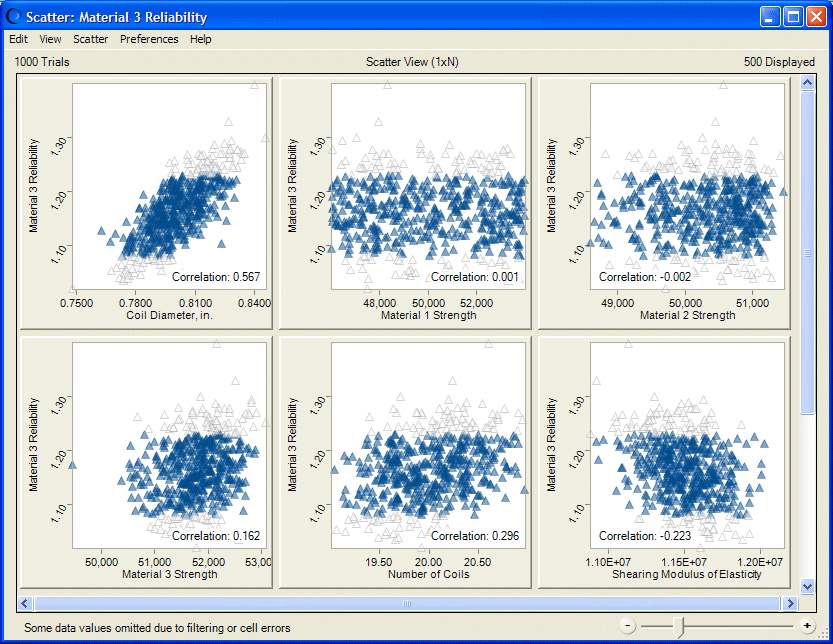

Figure 43, Scatter Chart Showing Filtered Points shows the same data as Figure 40, Scatter Chart, Scatter View, with Optional Lines and Correlations except Material 3 Reliability has been filtered to only include data between 1.08 and 1.23. Excluded data shows as very light triangles while included data is plotted normally, in this case as transparent blue triangles, size 4.

Figure 43. Scatter Chart Showing Filtered Points

This figure displays a scatter chart, showing filtered points.
