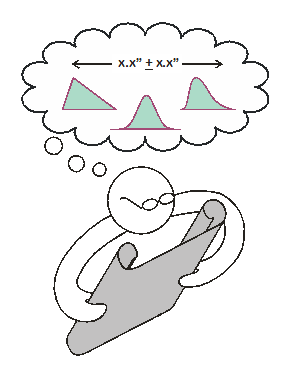

With uncertainty and risk lurking around every corner, it is incumbent on us to account for it in our forward business projections, whether those predictions are financially-based or engineering-centric. For the design engineer, he may be expressing dimensional variance in terms of a tolerance around his nominal dimensions. But what does this mean? Does a simple range between upper and lower values accurately describe the variation?
In my last couple of posts, I provided an introduction into the topic of Tolerance Analysis, relaying its importance in doing upfront homework before making physical products. I demonstrated the WCA method for calculating extreme gap value possibilities. Implicit in the underlying calculations was a transfer function (or mathematical relationship) between the system inputs and the output, between the independent variables and the dependent variable. In order to describe the other two methods of allocating tolerances, it is necessary to define and understand the underlying transfer functions.

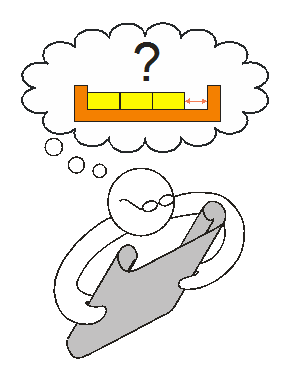

As stated in my last post, there are three common approaches to performing Tolerance Analysis. Let us describe the simplest of the three, the Worst Case Analysis (WCA) approach. An engineering-centric term in the Tolerance Analysis world would be Tolerance Stacks, usually meaning in a one-dimensional sense. The explanation begins with probably the most overworked example found in dusty tomes (my apologies in advance).
(I would like acknowledge James Ministrelli, DFSS Master Black Belt and GD&T Guru Extraordinaire, for his help & advice in these posts. Thanks, Jim!)
